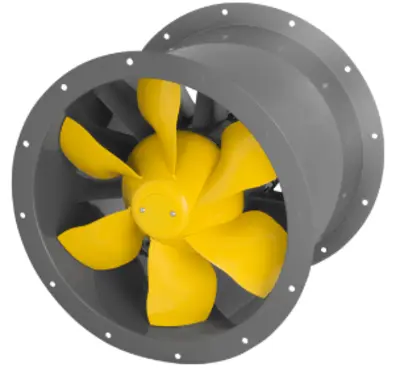

AL D - Axialine tube fan

This medium-pressure axial fan is designed for high aerodynamic efficiency, with airflow directed over the motor. It features an aerodynamically optimized impeller with 6 blades and a conical hub, made from a robust welded design. The impeller is balanced (DIN ISO 1940, G6.3) and powder-coated for corrosion resistance (C3 category). The fan’s casing is weight-optimized, with a 3D guide device for both horizontal and vertical airflow, and is also powder-coated. Powered by a high-efficiency IE3 motor (B14 design, IP55 protection), it supports cold starts and speed control via frequency converter.
