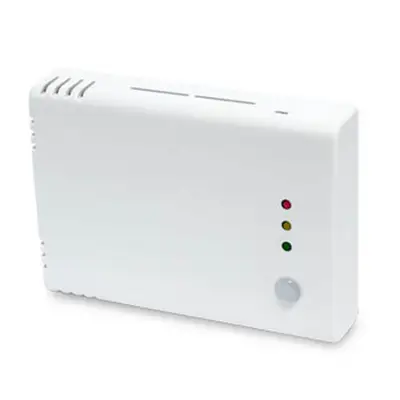

RSMFG-2R - Multifunctional CO2 transmitter

This multifunctional room transmitter measures temperature, relative humidity, carbon dioxide (CO2) and ambient light in commercial or residential environments. The required supply voltage is: 15–24 VAC ±10 % or 18-34 VDC. This sensor features three analogue / modulating outputs (0-10 VDC / 0-20 mA / 0-100 % PWM) and Modbus RTU communication. The CO2 sensor element is replaceable. All settings can be adjusted via Modbus RTU. In many applications, the integreated light sensor can be used to control the ventilation system in function of the occupancy of the room. The light intensity of the integrated LEDs for status indication can be adjusted via Modbus RTU.
